The Raffaello Postural Lab consist of a single-unit, podal assessment platform and desktop structure with two photographic units for image acquisition. Ideal for assessment and analysis of mono and bipedal, static support and rear foot and ankle posture.

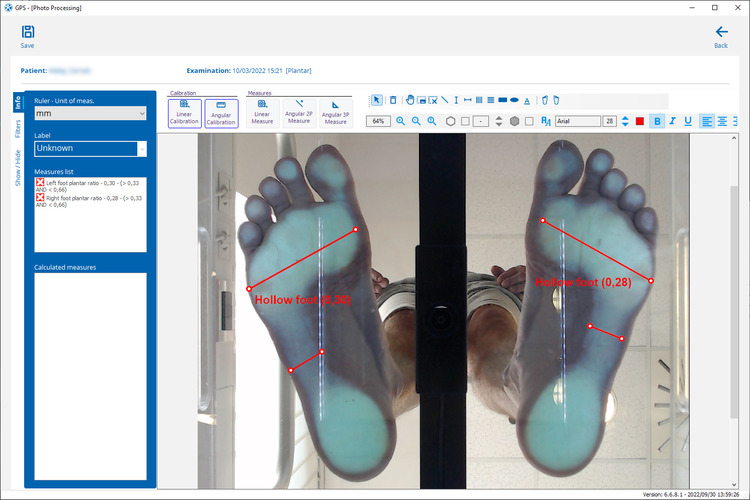

It is possible to acquire images under different conditions or at various intervals, save the images and then compare them using the software. Measurements are made directly on the acquired image and an identification label can be connected to each measurement. The measurements are saved within the image itself, can be recalled later, displayed on patient reports and even exported for data processing in research.

The Raffaello Postural Lab is ideal to determine foot arch type and foot and ankle postures, and to follow up postural deviations which are unhealthy or imply a risk of injury or developing a disorder. Following specific therapeutic interventions, exercises and other corrective actions frequent assessments with the Raffaello can help the analysis of therapeutic progress and improvement in posture.

At the end of an examination a report can be easily and quickly compiled and printed to give to the patient. Data and images of different visits can be compared and easily analysed. For all measurements tolerance levels can be set and reported so that it is easy to see which metrics are within healthy range and which are not.
Foot and ankle posture assessments are completely non-invasive, pain free and very quick. So repeat, follow-up assessments can be made without risk and as many times and frequently as needed.


Supplied with: Podoscope 3.0, main frame; safety handrail, desk with two shelves, PC support bracket, 2 cameras.

Software modules: static posture analysis.



PC System requirements

Our postural labs work with the GPS 6 software. We strongly advise our Postural data storage - accessory code 01799. As alternative we provide you with below minimum or recommended PC system requirements.

Processor Intel i5 CPU or AMD equivalent Intel i5 CPU or higher or AMD equivalent
RAM 8 GB 1 16 GB
GPS software reserved free space 50 GB 2 100 GB 2
Hard disk SSD or NVME SSD or NVME
Dispaly resolution 1366 x 768 (HD) 1920 x 1080 (Full HD)
USB port At least 2 reserved At least 2 reserved
Operating system Windows 10 OS Windows 10 OS
Mounting option VESA 50/75/100 3
(for display or All-in-One system)
VESA 50/75/100 3
(for display or All-in-One system)

1 16GB RAM are preferable if other applications are installed on the PC.
2 The free space on PC should be more than the suggested part for GPS SW.
3 Bracket and plate provided as standard in the supply.

Notice: We recommend that you do not install other software on your computer to avoid possible conflicts.

This diagnostic unit can be integrated with the products:
